Intelligent inline fastening for modern assembly.
The IQi Series is a low-torque inline electric screwdriver platform available in both transducerized and current control configurations. Designed to streamline modern assembly environments, it enables faster setup, automated workflows and remote system access to improve overall productivity.
Advanced fastening strategies, real-time data traceability and the industry’s first tilt angle control help elevate quality and process control. From high-volume production lines to quality-critical manufacturing applications, the IQi Series delivers precise, reliable performance while helping reduce total cost of ownership.
IQi Series advanced features.
Advanced Tightening Control
Program advanced torque, angle, prevailing torque and seating strategies to proactively identify fastening issues before they become costly problems. Real-time detection helps maintain process integrity and reduce rework across the line.
- Detect floating fasteners, missing parts, damaged threads and misalignment in real time
- Reduce rework and quality costs through advanced tightening strategies
- Maintain consistent torque application across high-volume production
Tilt Angle Control
With configurable tilt angle control, operators can define working limits to ensure proper tool alignment throughout the fastening cycle. Precise positioning protects joint integrity and improves overall assembly quality.
-
Program allowable tilt limits to maintain correct tool alignment
-
Prevent cross-threading and joint damage before it occurs
-
Reduce costly repairs caused by misalignment and overcorrection
iQ Stop
iQ Stop introduces a seamless transition from rundown speed to final tightening speed without stopping. The result is faster fastening cycles while maintaining precise torque control.
-
Transition instantly from high speed to final torque without pause
-
Improve cycle times while preserving tightening accuracy
-
Increase output without sacrificing quality standards
Results you can measure on the floor.
Faster setup
-
Cut setup time up to 50 percent with an intuitive web-based interface
-
Eliminate manual controller adjustments and workflow interruptions
-
Seamless MES and Fieldbus integration automates tool and job selection
-
Rapid deployment supports immediate operational readiness
Higher throughput
-
Real-time traceability and live production data
-
Remote programming, monitoring and troubleshooting
-
Faster issue resolution with fewer on-site interventions
-
Greater uptime across production teams
Greater precision
-
±3.5 percent torque accuracy on transducerized models
-
Precise torque and angle control reduces rework
-
Industry-first tilt angle control improves alignment and joint integrity
-
Consistent, repeatable fastening performance
Lower ownership costs
-
Over 1 million maintenance-free cycles
-
Reduced downtime and service frequency
-
Durable brushless motor design
-
Extended tool life with fewer replacements
Intelligent fastening.
Fully integrated.

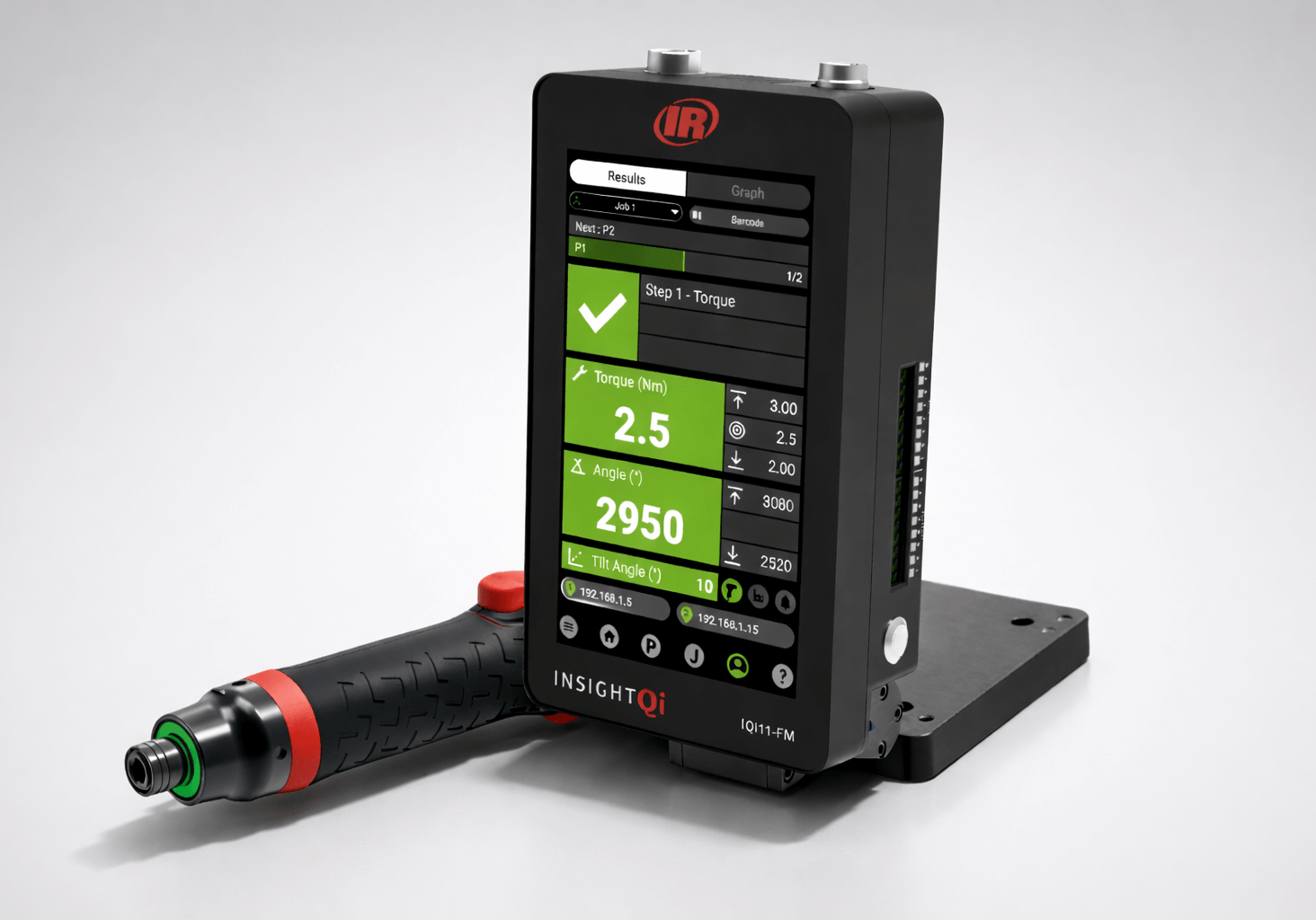

The IQi Series pairs advanced inline tooling with a powerful controller platform to deliver precision, traceability and seamless system integration. From operator ergonomics to enterprise connectivity, every component is engineered to support modern, data-driven assembly environments.
Intelligent software and system integration.
Advanced software control
-
Configure up to 64 jobs and 32 Psets per tool
-
Web-based programming with unrestricted browser access
-
User management, logic rules and high-fidelity cycle results display
-
Embedded help and multi-language support
Onboard data storage
-
Store up to 1 million tightening results for full traceability
-
Removable SSD stores all settings and production data
-
Fast recovery through SSD swap or full USB backup and restore
Seamless connectivity
-
Integrated Ethernet, USB and Serial communication
-
Fieldbus support including Ethernet IP and PROFINET
-
MES protocol support including Open Protocol and ToolsNet
-
Barcode functionality via USB, Serial or Ethernet
Precision hardware.
Production ready.
60 Second
Boot Time
2 Tool Families
Transducerized & Current Control
4 USB Ports
USB 2.0 x 2
USB 3.0 x 2
7" Touch Screen
Full-Color Capacitative Touch Screen
1 Ethernet Port
1 Serial Port
Specifications
| Lever Start | IQI2LT0017TQ4 | IQI-PS-1 | 0.02-0.17 | 50-1500 | 1.01 | 1/4" QC | 9.57 |
| IQI2LT0017TM4 | IQI-PS-1 | 0.02-0.17 | 50-1500 | 1.01 | Half Moon | 9.57 | |
| IQI2LT0050TQ4 | IQI-PS-1 | 0.1-0.5 | 20-1000 | 1.01 | 1/4" QC | 9.57 | |
| IQILT0100TQ4 | IQI-PS-1 | 0.2-1 | 20-1000 | 1.01 | 1/4" QC | 9.57 | |
| IQI2LT0200TQ4 | IQI-PS-1 | 0.4-2 | 20-800 | 1.01 | 1/4" QC | 9.57 | |
| IQI2LT0250TQ4 | IQI-PS-1 | 0.5-2.5 | 20-525 | 1.01 | 1/4" QC | 9.57 | |
| IQI4LT0500TQ4 | IQI-PS-2 | 5-Feb | 20-900 | 1.87 | 1/4" QC | 9.76 | |
| IQI4LT1000TQ4 | IQI-PS-2 | 10-Apr | 10-500 | 1.87 | 1/4" QC | 9.76 | |
| IQI4LT1500TQ4 | IQI-PS-2 | 15-May | 10-300 | 1.87 | 1/4" QC | 9.76 | |
| Push To Start / Lever Start | IQI2LT0017PQ4 | IQI-PS-1 | 0.02-0.17 | 50-1500 | 1.08 | 1/4" QC | 10.59 |
| IQI2LT0017PM4 | IQI-PS-1 | 0.02-0.17 | 50-1500 | 1.08 | Half Moon | 10.59 | |
| IQ112LT0050PQ4 | IQI-PS-1 | 0.1-0.5 | 20-1000 | 1.08 | 1/4" QC | 10.59 | |
| IQ/12LT0100PQ4 | IQI-PS-1 | 0.2-1 | 20-1000 | 1.08 | 1/4" QC | 10.59 | |
| IQ/12LT0200PQ4 | IQI-PS-1 | 0.4-2 | 20-800 | 1.08 | 1/4" QC | 10.59 | |
| IQ/12LT0250PQ4 | IQI-PS-1 | 0.5-2.5 | 20-525 | 1.08 | 1/4" QC | 10.59 | |
| IQ/14LT0500PQ4 | IQI-PS-2 | 5-Feb | 20-900 | 1.94 | 1/4" QC | 10.71 | |
| IQ/14LT1000PQ4 | IQI-PS-2 | 10-Apr | 10-500 | 1.94 | 1/4" QC | 10.71 | |
| IQ|14LT1500PQ4 | IQI-PS-2 | 15-May | 10-300 | 1.94 | 1/4" QC | 10.71 |
| Tool Cables* | IQI-CABLE-2M | IQI cable 2 meter |
| IQI-CABLE-5M | IQI cable 5 meter | |
| Controller* | IQ/11-FM | IQI Series controller with fieldbus and MES |
| Power Adapters* | IQI-PS-1 | IQI 200W Power Adapter |
| IQI-PS-2 | IQI 400W Power Adapter | |
| *Required for use |
